Flattening the Blue Marble
This is what earth looks like when you take a picture of it from 29,000 kilometers away.
- This photo is called the Blue Marble, it was taken from Apollo 17
Flattening the Blue Marble
This is the version that was published.
- NASA rotated the image 180 degrees to fit peoples expectations

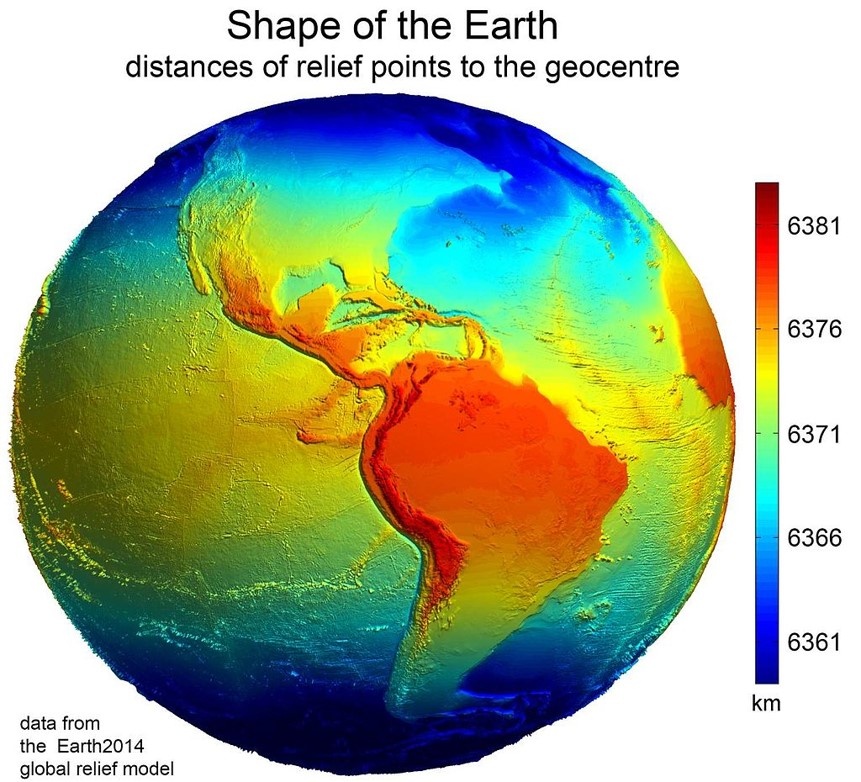

Complexities of Earth
A lumpy ball of rock.
- The earth isn’t “round”!
- It has multiple distortions caused by:
- Topography
- Gravity Differentials
- Centrifugal Force
Our Infinitely Complex Earth
Cartographers have developed strategies for dealing with these distortions:
- Topography
- Gravity Differentials
- Centrifugal Force
Ignore Topography!?
Topography is very localized, in most applications it isn’t explicitly needed to make a map.
- We can account after the fact if needed

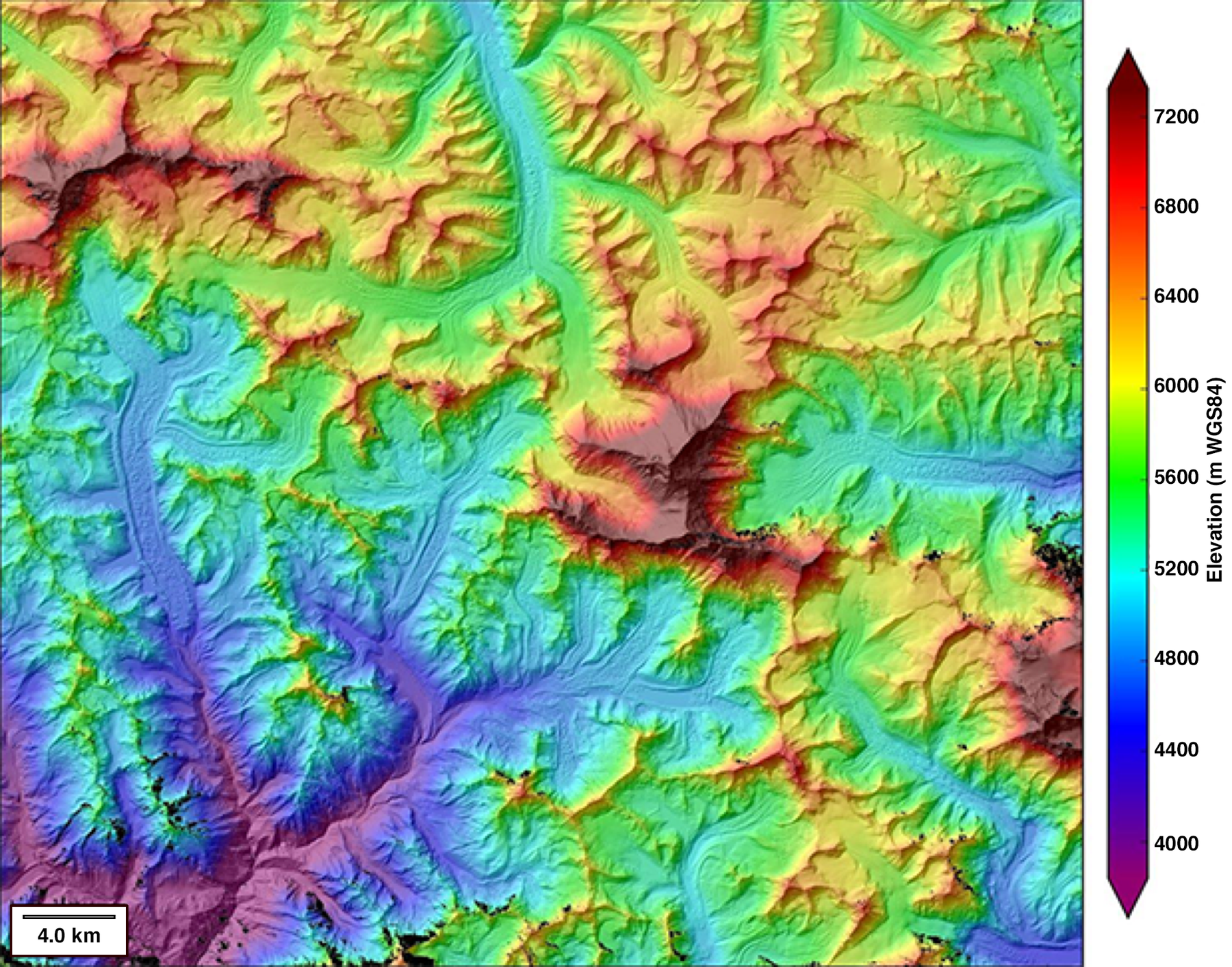

- Digital Elevation Models
DEM of Mt. Everest
Ignore Topography!?
Topography is very localized, in most applications it isn’t explicitly needed to make a map.
- We can account after the fact if needed
- Digital Elevation Models

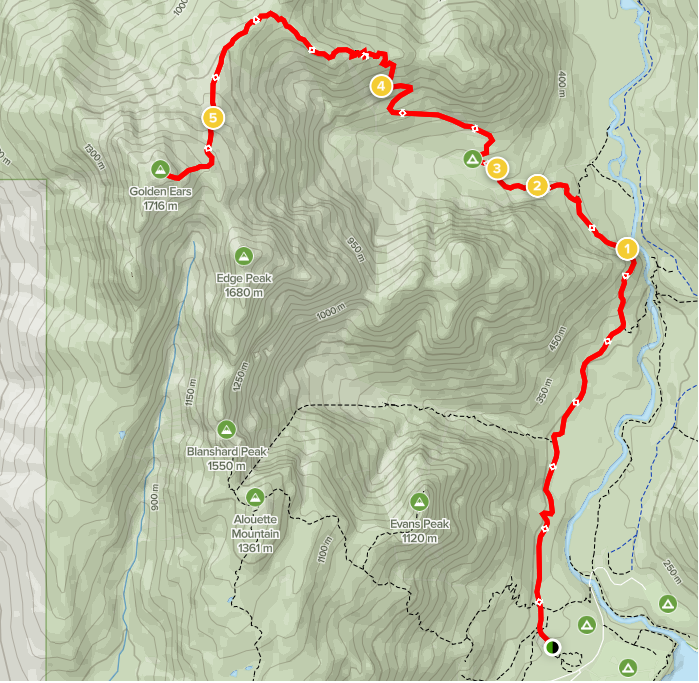

- Contour Lines
Golden Ears Trail

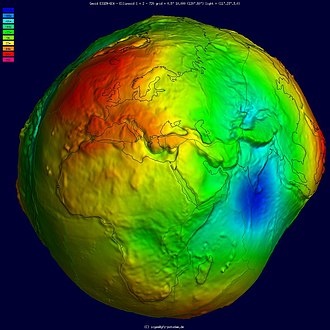

The Geoid
A simplified model that ignores due to topography.
- Gravity differentials: Earth’s crust is not uniformly dense
- Surface to “sinks” down or “floats” up
- Continental scale:
- +85 m to −106 m

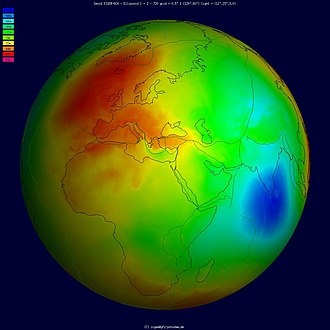

Vertical scale exaggerated to show gravity induced elevation differences.

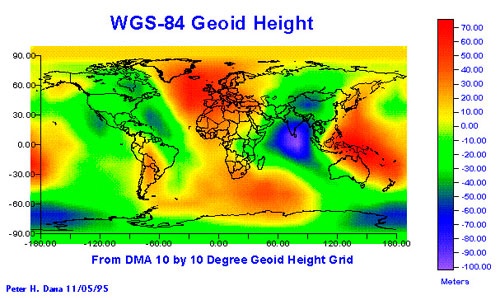

The Geoid
A simplified model that ignores due to topography.

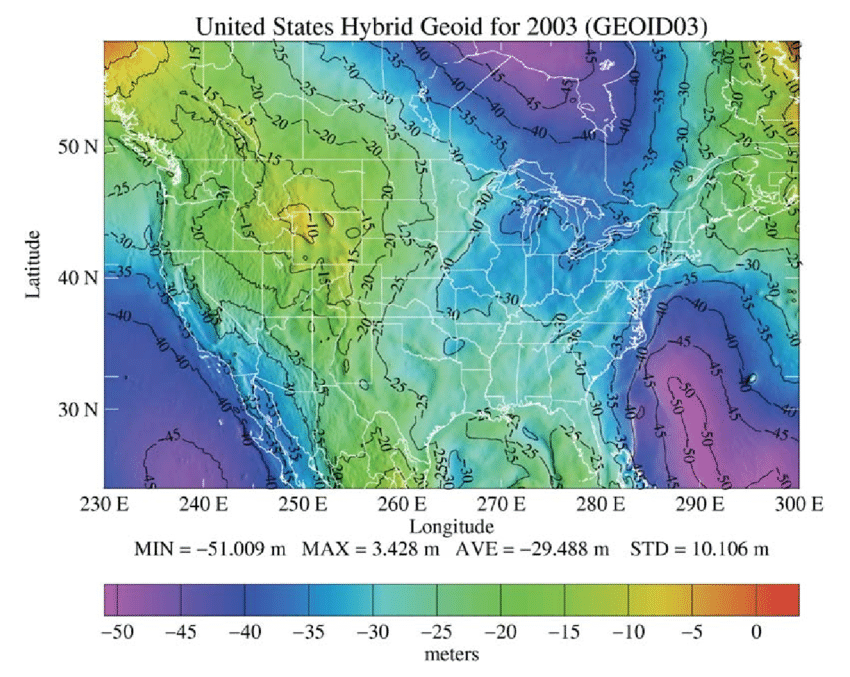

- Gravity differences measured by satellites
![]()
The Geoid without vertical exaggeration.

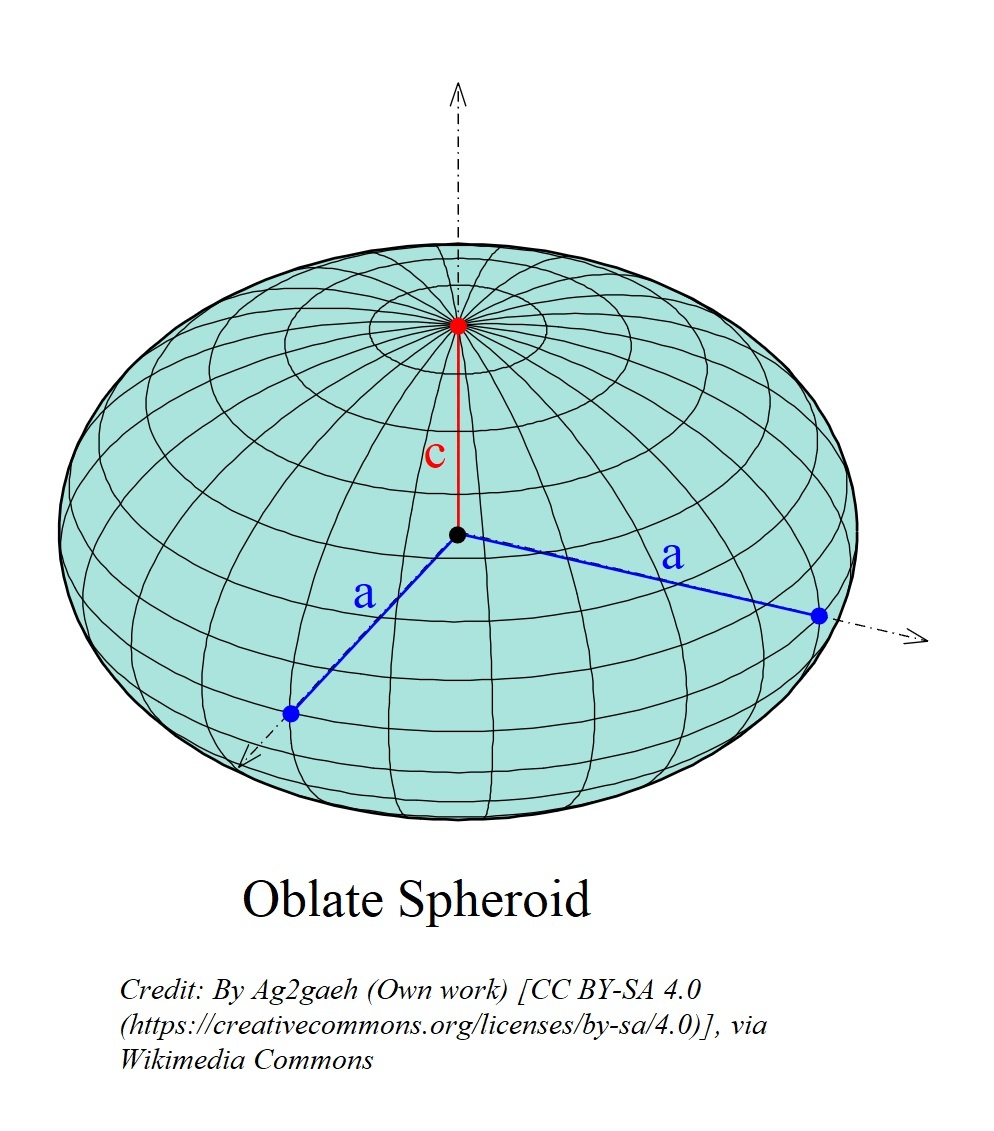

The Oblate Spheroid
Due to Centrifugal Force the earth is ~ 26 km wider at the equator
- A close approximation of Earth’s real shape
Datums

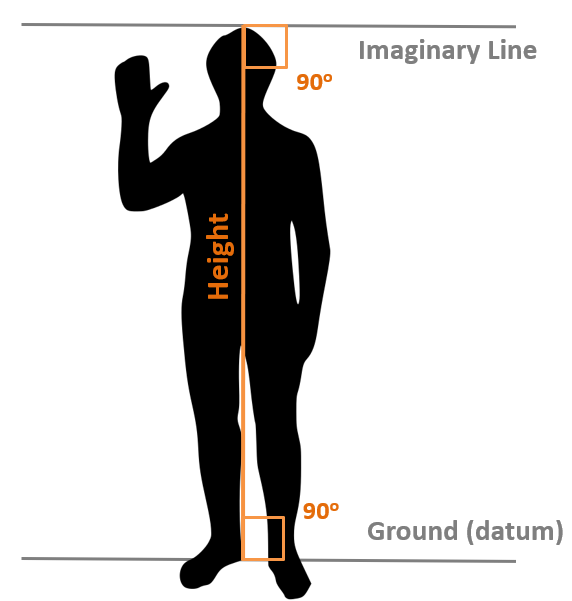

Measuring distance/height requires a reference point.
- A Datum is the reference system
- Gives meaning to coordinates
Datums

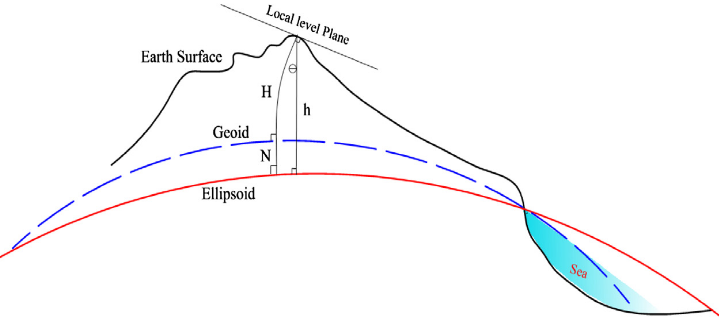

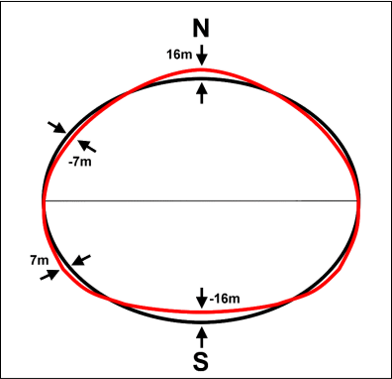

Fit a spheroid to the geoid using a Datum.
Explicitly account for effects of Centrifugal force
Minimize distortion from density differentials
“Ignore” topography.
- Can be Global or Local
Reference point to account for distortion

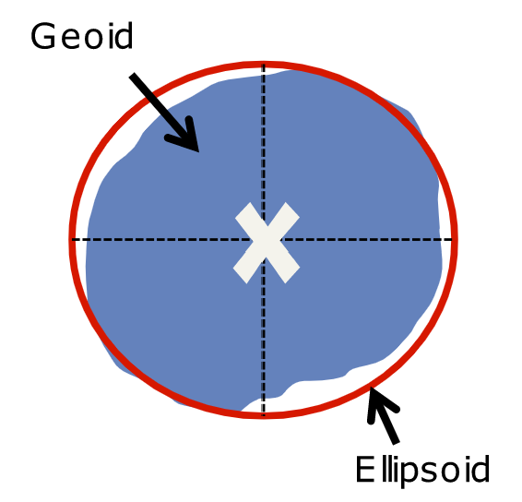

Global Datums
The center of the geoid is the reference point.
- Fits fairly well everywhere
![]()

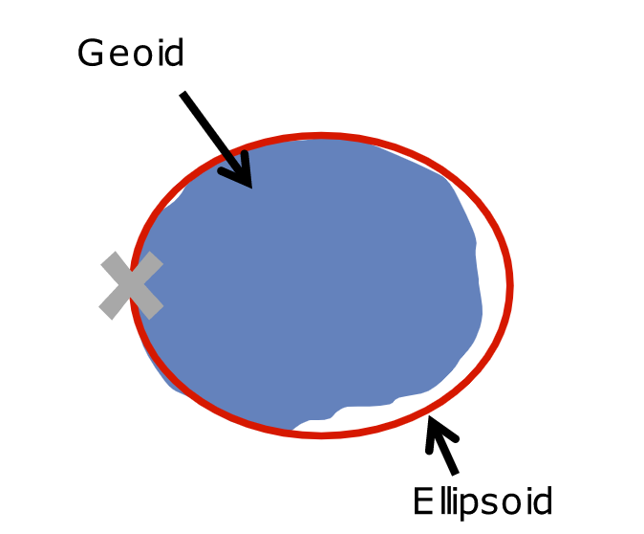

Local Datums
A location on the geoid’s surface the reference point.
- Fits very well in one region
Why Does it Matter?
Generally speaking:
- Global maps always use a global datum
- Local datums are better for specific regions
- Global datums can work
- But less accurate
Why Does it Matter?

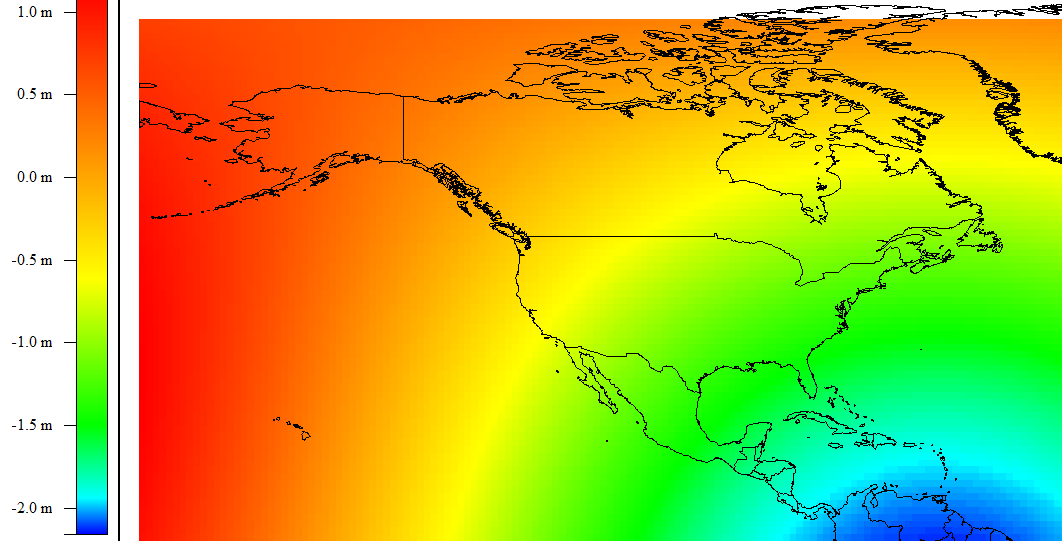

Only minor differences between in North America, larger differences elsewhere.
Geographic Coordinate System
Latitude/Longitude is a Geographic Coordinate System (GCS).
- Location on the surface of a 3D object with only 2 values
- Fixed to the surface of spheroid
- Not the actual earth’s surface

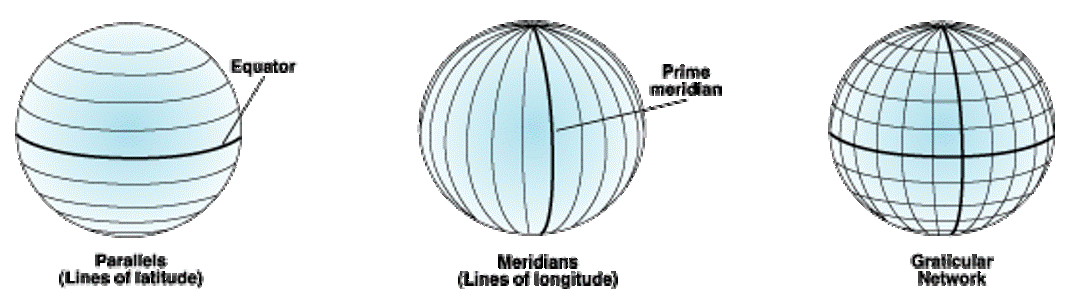

Latitude
Angular distance from the equator
- -90°(South) to +90°(North)
- Often called parallels
Longitude
Angular distance from the prime meridian
- -180° (West); to +180° (East)
- Often called meridians

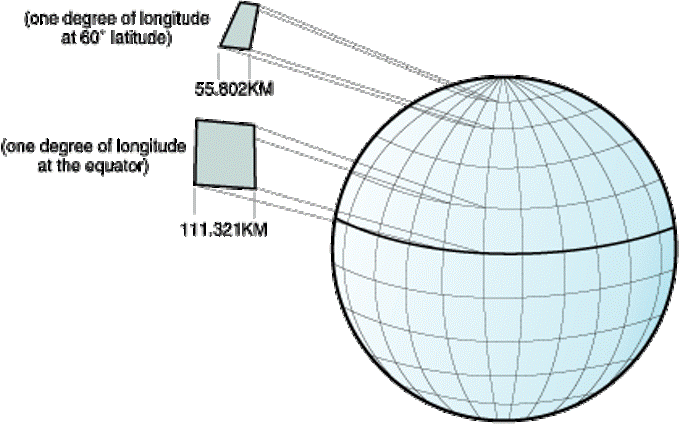

Meridians converge at the poles!
Distance between degrees of longitude decreases with increasing latitude.
- You can’t accurately display a Geographic Coordinate System on a 2D surface (map/screen).
- This is why we need map projects!

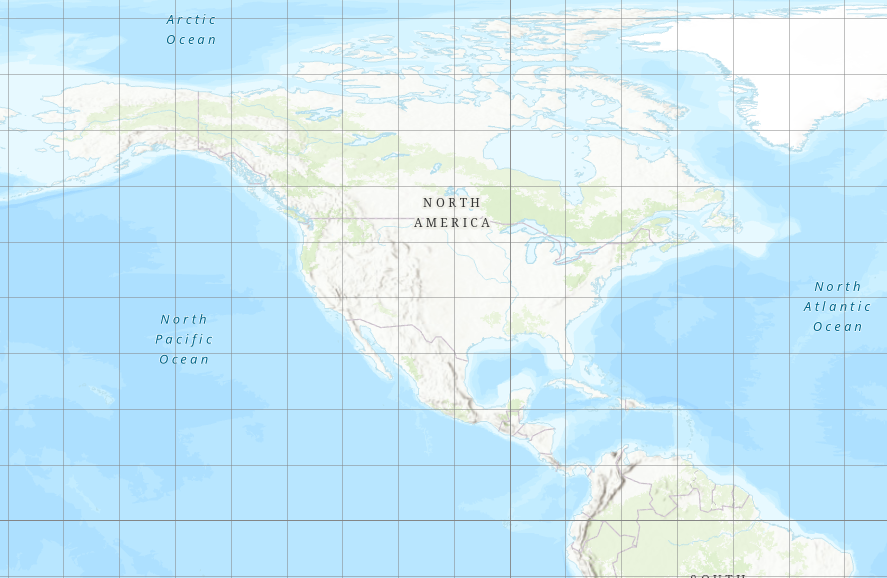

Making a Flat Map

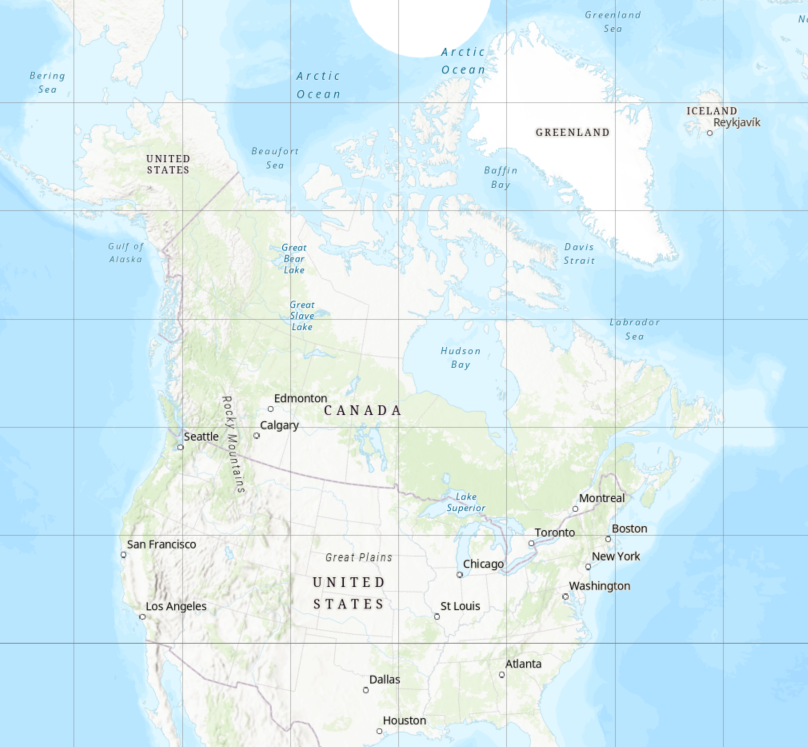

Displaying Lat/Lon in 2D doesn’t work, things to look “scrunched”
We have to Project our map.
- Intentionally distort data to display in 2D

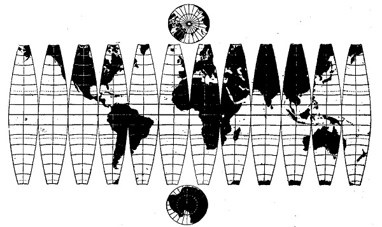

Projected Coordinate Systems
A map projection is a mathematical transformation used to “flatten” a geographic coordinate system.

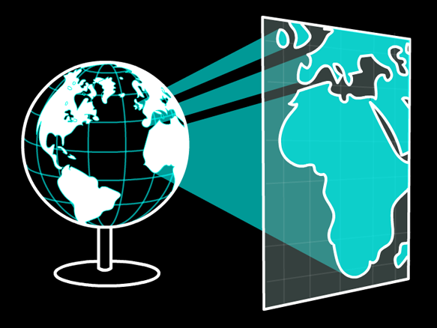

- Imagine sending rays of light through the ellipsoid onto a flat surface, the resulting image is a projection
Making a Flat Map
Applying a projection:
- Converts to linear units
- Allows distance/area calculations
- Makes things look better

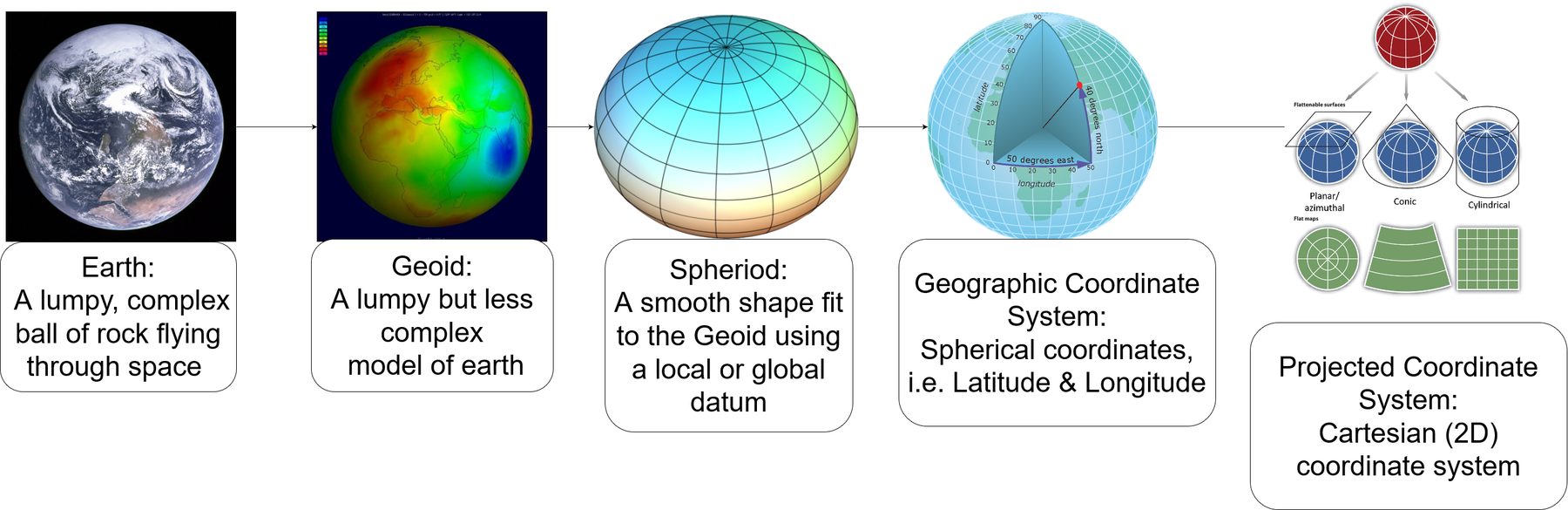

Steps of Abstraction
